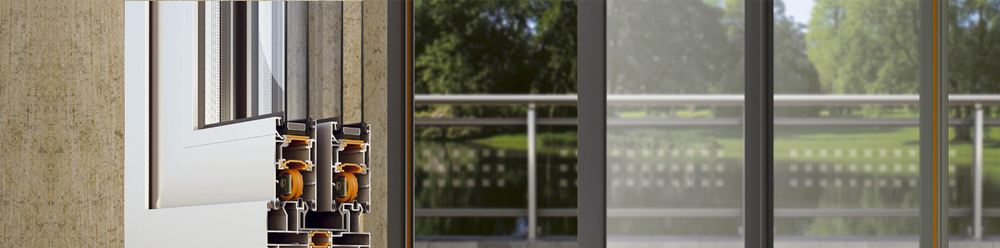

Alumil S450 Gs System
S450GS is a very versatile thermal insulating system for uplifting sliding patio doors and windows. This systems uses a different mechanism and offers the following technical characteristics:
Contact Sales Agent ❯
Technical Details
- 45 mm sash width
- Stainless steel rails for smooth and easy scrolling
- high efficiency brushes (tri- fin) for sealing simple sliding constructions
- Lift & Sliding sash up to 200 kg with aluminium hardware
- High thermal insulation
- Suitable for any typology of sliding constructions, even pocket doors
- Combination with sliding shutters and/or sliding fly screens
- Optional higher security level by using multi locking hardware
|
PROFILES CHARACTERISTICS |
|
| Frame width | 114,5 mm |
| Sash width | 45 mm |
| Minimum visible height of construction | 122,5 mm |
| Sash mechanism weight limit | 200 Kg |
| Maximum glass thickness | up to 28 mm |
| Cross section thickness | up to 1,6 |
|
SYSTEM CHARACTERISTICS |
|
| Type of system | Insulated |
| Uf | from 2,6 up to 3,7 W/m2K |
| Exterior aesthetics | Flat |
| Sliding Type | Lift & Sliding |
| Type of thermal insulation | 24 mm polyamide |
| Mechanism | Giesse |
| Typologies |
|
