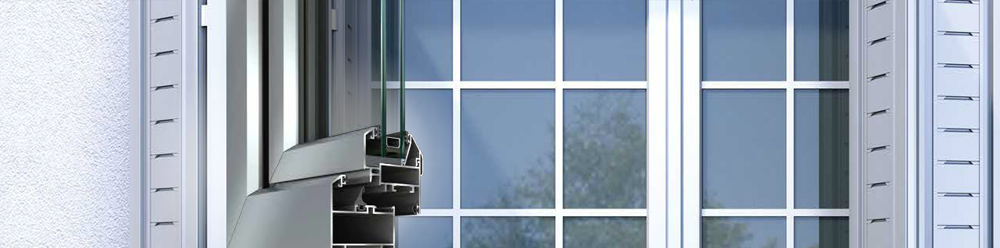

Alumil Smartia M15000 System
M15000 is a non thermal -break system for windows, entrance and patio doors that includes a vast range of solutions, which ensure the following characteristics shown in the description.
Contact Sales Agent ❯
Technical Details
- Variety of designs (softline, flat, inclined, classic)
- Tilt & turn windows and patio doors (inwards & outwards)
- Offers concealed window typologies (single and double)
- Anti-Panic doors
- Smoke proof doors
- Swing doors
- Horizontal or vertical pivot windows and patio doors
|
PROFILES CHARACTERISTICS |
|
| Frame depth | 50 mm |
| Sash depth | 84 mm |
| Minimum visible face width | 137 mm |
| Minimum visible width (Τ-profile) | 70 mm |
| Sash mechanism weight limit | 130 Kg |
| Glass thickness | 24 - 40 mm |
| Cross section thickness | 1,6 - 2,5 |
|
SYSTEM CHARACTERISTICS |
|
| Type of system | Uninsulated |
| Uf | 7 W/m2k |
| Exterior aesthetics | Flat, Curved, Inclined, Classic |
| Glazing method | Glazing Bead |
| Type of thermal insulation | 34 mm polyamide |
| Mechanism | European Groove, Pvc Groove Steel 16 mm |
| Typologies | Fixed. Single & double tilt & turn window. Single & double leaf entrance door, inwards and outwards. Single, double, triple & quadruple leaf hinged shutter |
