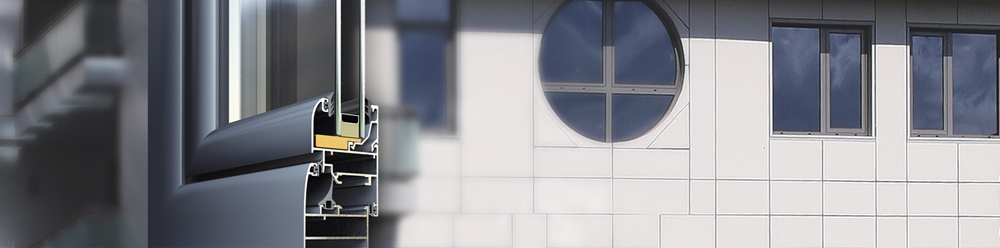

Alumil Smartia M940 System
M940 is the most lightweight system for opening and/or tilt frames.
Contact Sales Agent ❯
Technical Details
- Basic depth of system 37 mm
- Water and air tightness is achieved with three levels of EPDM gaskets
- Great diversity of designs regarding the windows and doors’ appearance
- Cover all types of opening frames
- Combines with M900 sliding system
- Can be used in all possible construction applications
- Single glazing with thickness from 10 mm up to 26mm
| PROFILE CHARACTERISTICS | |
| Frame depth | 37 mm |
| Sash depth | 44 mm |
| Minimum visible width | 81,7 mm |
| Minimum visible width (Τ-profile) | 67,8 mm |
| Sash mechanism weight limit | 80 Kg |
| Glass thickness | up to 16 mm |
| Cross section thickness | 1,1 - 1,4 |
| SYSTEM CHARACTERISTICS | |
| Type of system | Uninsulated |
| Uf | 7 W/m2K |
| Exterior aesthetics | Flat, Curved |
| Glazing method | Aluseal system |
| Type of thermal insulation | - |
| Mechanism | European Groove |
| Typologies |
|
