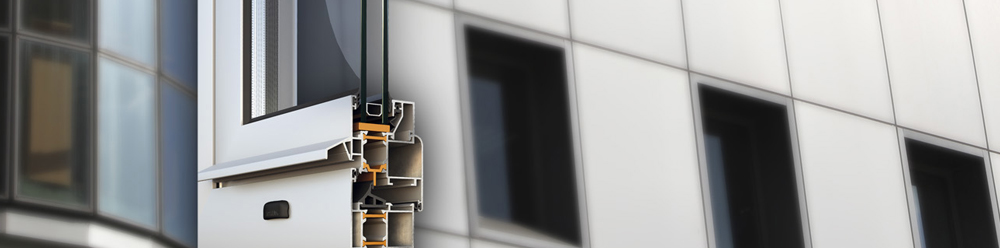

Alumil Smartia M9650 System
The M9650 is an economical thermal break system with a special glass-fiber reinforced polyamide and a satisfactory level of insulation. Certified by the German institute IFT Rosenheim, provides basic insulation, and can be combined without significant aesthetics difference in the same building with the frame system M11000, since they have the same characteristics and the same design lines.
Contact Sales Agent ❯
Technical Details
- Basic depth of system 50mm
- Glazing surfaces up to 30mm of total width could be applied and each sash shouldn’t more than 130Kg in weight
- Possibility to combine the system both of European or PVC groove hardware
- Glazing reinforced polyamide (18 mm to frame and sash) offers satisfied thermal insulation coefficient (Uf = 2,6 – 3,3 W/m²K)
|
PROFILE CHARACTERISTICS |
|
| Frame depth | 50 mm |
| Sash depth | 57,5 mm |
| Minimum visible width | 101,6 mm |
| Minimum visible width (Τ-profile) | 70 mm |
| Sash mechanism weight limit | 130 Kg |
| Glass thickness | 32 mm |
| Cross section thickness | 1,4 - 2,0 |
|
SYSTEM CHARACTERISTICS |
|
| Type of system | Insulated |
| Uf | 2,6 – 3,3 W/m2K |
| Exterior aesthetics | Flat, Curved |
| Glazing method | Aluseal system |
| Type of thermal insulation | 18 mm polyamide |
| Mechanism | European Groove, Steel mechanism 16mm |
| Typologies | Fixed. Tilt & Turn. Single-leaf entrance door. Double leaf entrance door. Projected outwards |
