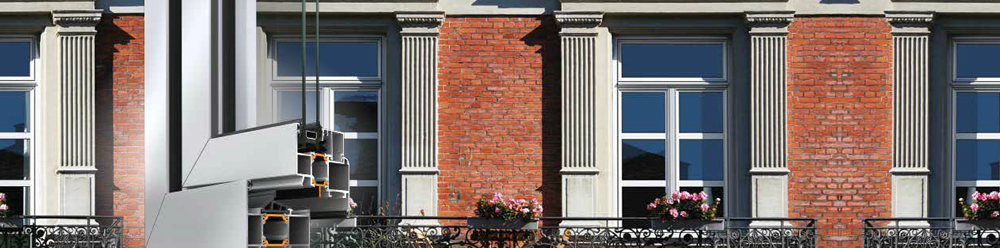

Alumil Smartia M11000 System
M11000 is a versatile system for any kind of thermal insulated doors and windows, which can meet the most demanding needs, thanks to the large range of solutions and profiles. The system can create all kind of typologies regarding hinged frames.
Contact Sales Agent ❯
Technical Details
- Variety of designs (flat, curved, inclined, classic) and alternatives for every need of architectural design with a vast collection of profiles
- Concealed window typologies (single and double) for more natural lighting
- Both European groove and PVC groove hardware can be applied
- WK 3 anti-burglar protection
- Special profiles available for any typology of entrance doors
- Pivot windows typology
|
PROFILES CHARACTERISTICS |
|
| Frame depth | 62,5 mm |
| Sash depth | 70 mm |
| Minimum visible facewidth | 86 mm |
| Minimum visible width (Τ-profile) | 70 mm |
| Sash mechanism weight limit | 130 kg |
| Glass thickness | up to 44 mm |
| Cross section thickness | 1,1 - 1,6 |
|
SYSTEM CHARACTERISTICS |
|
| Type of system | Insulated |
| Uf | from 2,1 up to 3,1 W/m2K |
| Exterior aesthetics | Flat, Inclined, Curved, Classic |
| Glazing method | Glazing Bead |
| Type of thermal insulation | 24mm polyamide |
| Mechanism | European Groove, Pvc Steel 16 mm |
| Typologies | Fixed. Single & double Tilt & Turn. Single & double Tilt & Turn outwards. Single-leaf entrance door inwards & outwards. Double leaf entrance door inwards & outwards. Projected outwards. Folding doors. VW. Single, double, triple & quadruple leaf hinged shutter |
