Alumil Smartia M23000 System

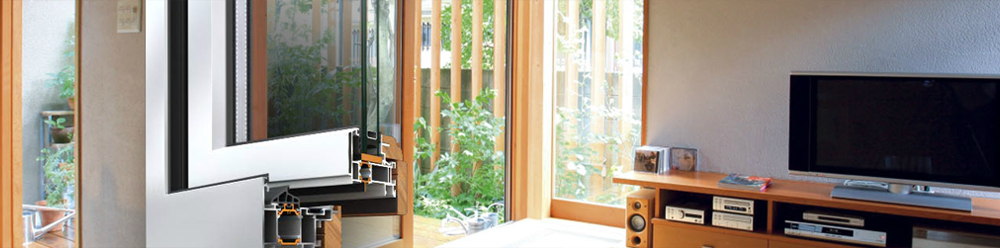

M23000 is Alumil’s exclusive proposal for thermal break aluminium systems that emphasizes on high thermal insulation and sound reduction, as well as high security standards. The system elegantly combines the top quality of aluminium with the leading aesthetic style of wood.
Contact Sales Agent ❯
The connection of aluminium and wood is achieved with special clips which allow air circulation for avoiding corrosion from water condensation. M23000 offers a high security level by using a PVC groove mechanism with “mushroom” locking bolts securing into strikers. This results to an increased forced entry resistance up to 30 minutes and a WK3 certificate from the Ift Rosenheim institute. In addition, 24mm polyamides are used so as to offer an increased thermal insulation of Uf = 2,1 W/m2K. Some of the significant benefits are:
Technical Details
- Combines elegantly with wood interiors
- Tilt & turn windows with PVC groove for WK3 anti-burglar protection
- Creates single and double tilt & turn windows, that can include fix parts
|
PROFILES CHARACTERISTICS |
|
|
Frame depth |
90 mm |
|
Sash depth |
111 mm |
|
Minimum visible face width |
117 mm |
| Minimum visible width (Τ-profile) | 78 mm |
| Sash mechanism weight limit | 130 Kg |
| Glass thickness | 28 - 32 mm |
| Cross section thickness | 1,4 - 2,6 |
|
SYSTEM CHARACTERISTICS |
|
| Type of system | Insulated |
| Uf | 2,1 W/m2K |
| Exterior aesthetics | Flat, Classic |
| Glazing method | Glazing Bead |
| Type of thermal insulation | 24 mm polyamide |
| Mechanism | Steel 16 mm PVC groove |
| Typologies | Fixed, Tilt & Turn |
